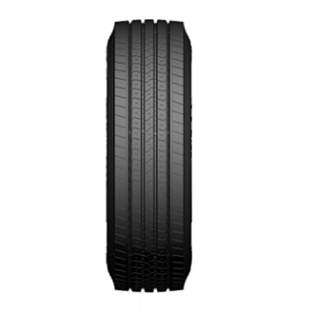

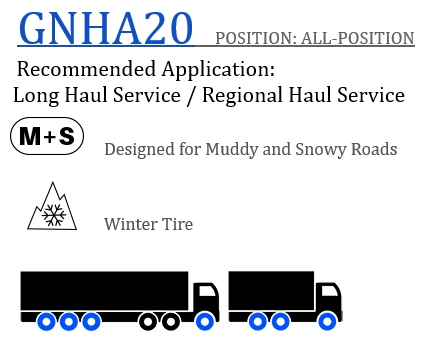

GNHA20: Long Haul, All Position Axle

Key features

GS I-FEAT Technology

  • Ensures highly efficient tire contour with high durability and even tread wear

Reinforced Tread Rib and Sipes

  • Provides high traction capability

Stone Ejection Bar on Tread Grooves

  • Reduces the tread cuttings

Wide & Grooved Shoulder

  • Improves the drainage performance

Dural Tread Radius

  • Makes even ground contacting area, improves the wear resistance

Optimized Carcass Line Profile

  • Positions the most suitable deflection zone, reduces sidewall heat generation, improved handling performance and driving comfort.



Size

Ply
Rating

(PR)

Std

Rim



Load Index

Speed

Rating



Max load(kg)

Max Pressure

Tread

Depth

Inch

Single/Dual

Single

Dual

kPa

(mm)

215/75R17.5

14

6.00

128/126

M

1800

1700

860

16

235/75R17.5

16

6.75

132/130

M

2000

1900

875

16

245/70R17.5

14

7.50

136/134

M

2240

2120

850

15

245/70R19.5

16

7.50

136/134

M

2240

2120

825

15

265/70R19.5

14

7.50

140/138

M

2500

2360

900

13

11R22.5

16

8.25

148/145

M

3104

2899

830

16

12R22.5

18

9.00

152/149

M

3552

3250

930

17

295/60R22.5

18

9

150/147

K

3350

3075

830

16

295/80R22.5

18

9.00

154/149

M

3750

3250

830

15

315/70R22.5

20

9.00

154/151

M (M)

3750

3350

900

15

(156/150)

315/80R22.5

18

9.00

154/151

(157/154)

M(L)

4125

3750

900

15

Next Product

Unique Features and Benefits:

High durability, long mileage.
Unique sipes design, excellent control.
